15-year product warranty
30-year linear power output
500W+ Range

N-Type Double Glass Bifaical Solar Module
575~590WattTOPCon

Bifacialty

Capable of generating power at back side

at least 80%efficiency of the front side,

Anti-PID(potentialinduced  degradation),

Passed anti-PID test under 85℃ damp heat

85%relative humidity for 192 hours

IEC61215,IEC61730
ISO 9001:2015(Quality management systems)
ISO 14001:2015(Environmental management systems)
ISO45001:2018(Occupational health and safety)
UNI 9177 la CLASSE DI REAZIONE AL FUOCO:1

Product Description
  • Bifacialty

    Capable of generating power at back side,at least

    80%efficiency of the front side

  • Anti-PID(potential induced degradation)

    Passed anti-PID test under 85℃ damp heat

    85%relative humidity for 192 hours

  • Great Durability against extreme conditions

    Passed salt mist corrosion test.ammonia corrosion test

    dust &sand test,fire test,allcertified by TUV

  • Lower LCOE

    Lower shading and resistive loss

    Lower temperature coefficient

  • Outstanding mechanical load Resistance

    2400 Pa wind load,5400 Pa snow load

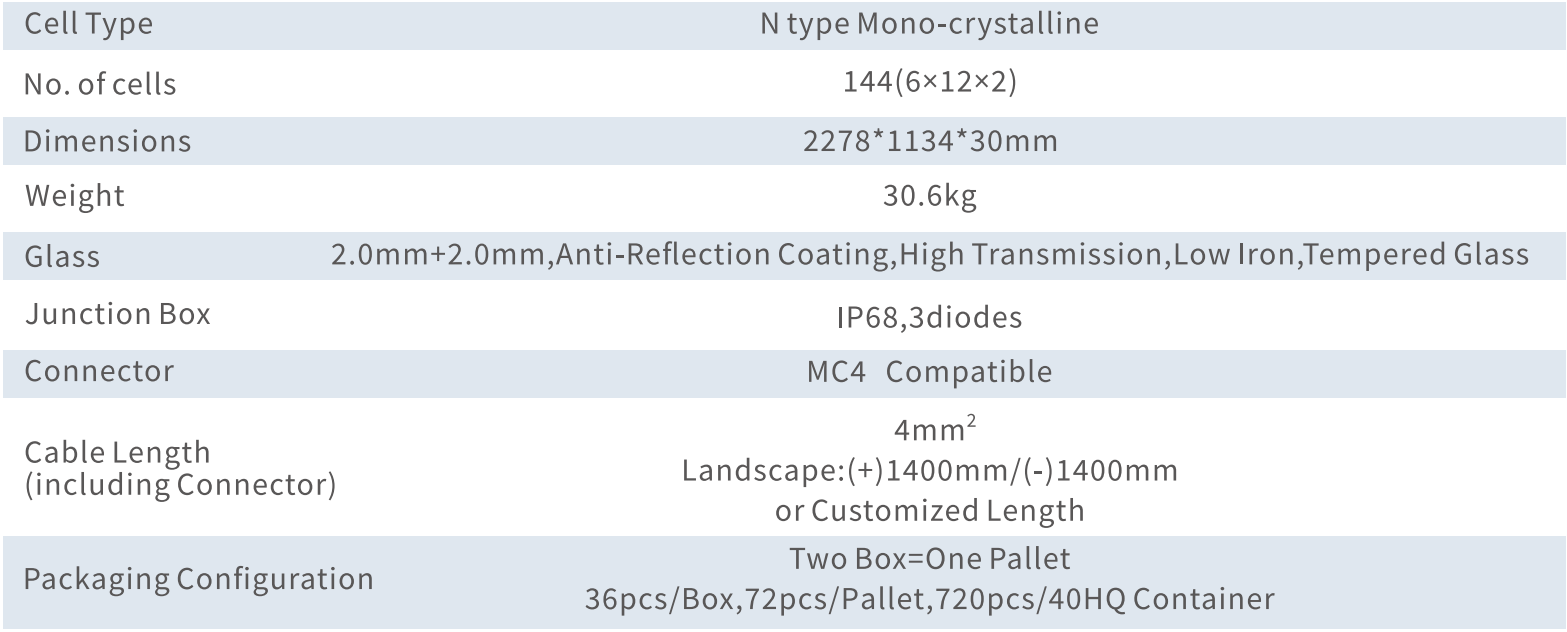

Specifications

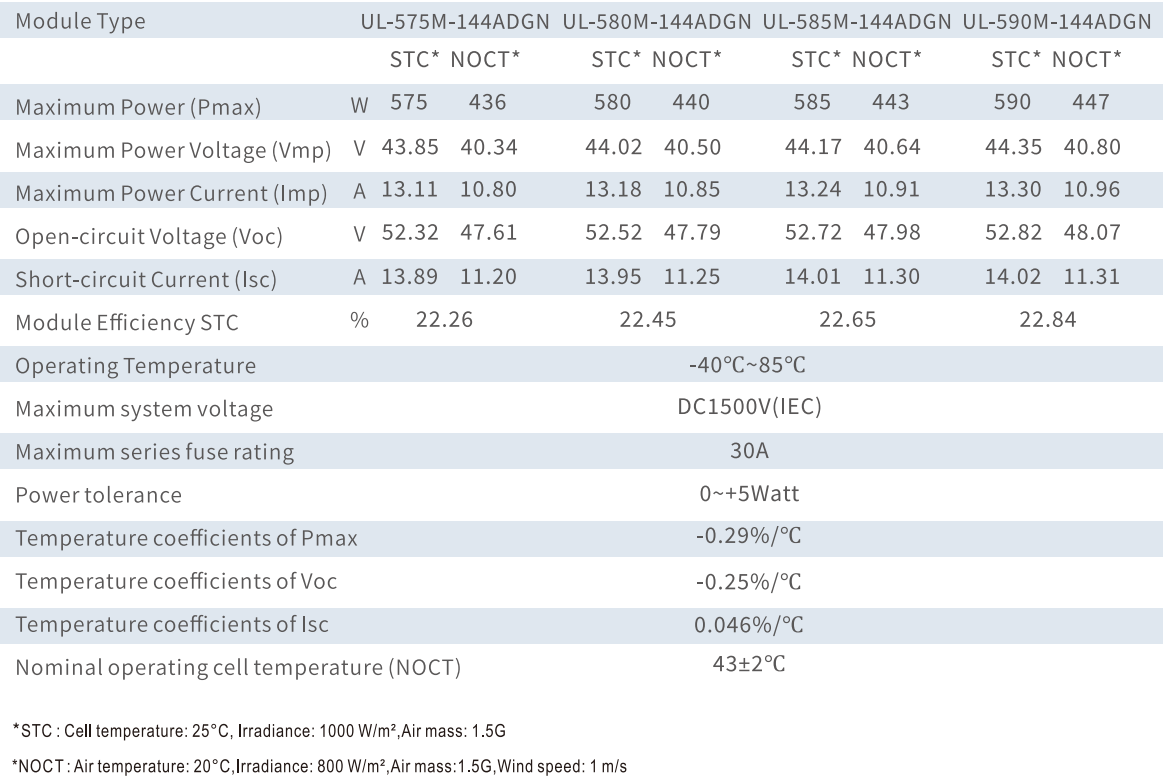

Electrical Specifications

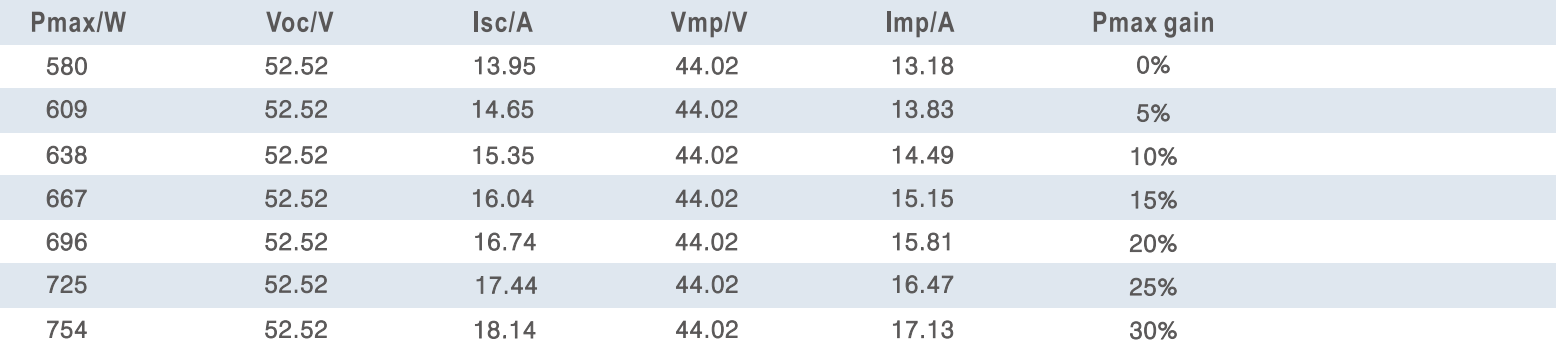

Electrical characteristics with different rear side power gain(reference to 580W front)
